Product Details:
Payment & Shipping Terms:
|
| Steel Pipe: | Q345B High Strength Steel | Rated Load: | 1600kg Per Cage |
|---|---|---|---|
| Rated Speed: | 0-40m/min | Max. Installation Hight: | 300m |
| Max. Passenger No.: | 30 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| Highlight: | 1600kg building construction hoist,300m building construction hoist,1600kg hoist building construction |
||
1.6 Ton/SC160-160 Building Hoist/hot galvanized with inverter Construction Elevator for high rise building
Features:
SC hoist is vertical transport machinery for building materials and personnel, driving with pinion and rack, applies to engineering of high rise. SC hoist is equipped with reliable electrical and mechanical safety device. It is an efficient and safety vertical transporting equipment.
The hoist can be installed and disassembled very easily and can also be heightened with the constant increase of building, According to customers' requirements, the cage can be single or double. The single cage building hoist can become a double cage building hoist by adding one cage and other components. The payload can be doubled if equipped with counterweight to meet different customers' requirements. The product has following features:
1. Do not require operators in the cage;
2. Thestructure is galvanized, and hard-wearing
3. Automatic stop is optional, which is convenient for transportation;
4. Space in the cage enlarged Structure optimized. The total weight reduces Motor power consumption reduces, so it saves on the electricity bll.
Specifications:
| Model | SC160/160 |
| Loading capacity0 | 2X1600KG |
| Rated speed | 0-40m/min |
| Motor & Gear Box | 2x2x11kw |
| Mast section size | 650*650*1508mm |
| Cage size | 3.2x1.5x2.1m |
| Safety device | SAJ40-1.05 |
| Hot galvanize parts | Mast section/trolley/tie-in/cage/enclosure |
| Counter weight | no |

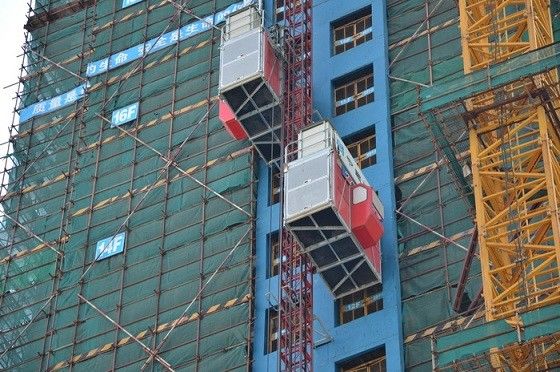

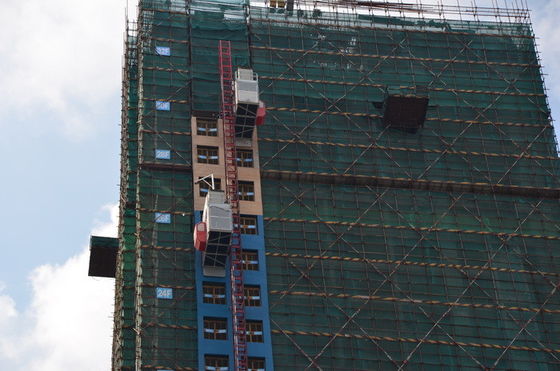

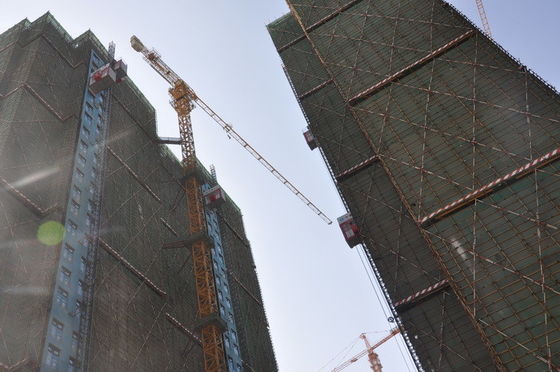

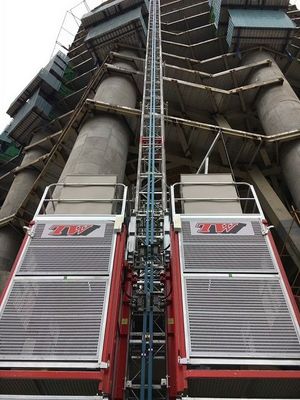

Case Show:
