Product Details:
Payment & Shipping Terms:
|
| Max Load: | 16ton | Jib Length: | 40m |
|---|---|---|---|
| Tip Load: | 3.8ton | Total Weight: | 28.5ton |
| Lifting Mechanism Power: | 75kW | Luffing Mechanism: | 30kW |
| Slewing Mechanism: | 2x4.5kW | ||
| Highlight: | 380V construction tower crane,CE construction tower crane,380V inner climbing tower crane |
||

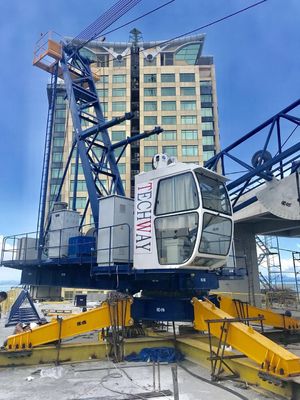

Derrick Crane TCW4038-16 for Inner Climbing Crane Dismantling or Materials Handling on the Roof
Derrick Crane DK16
Features1:

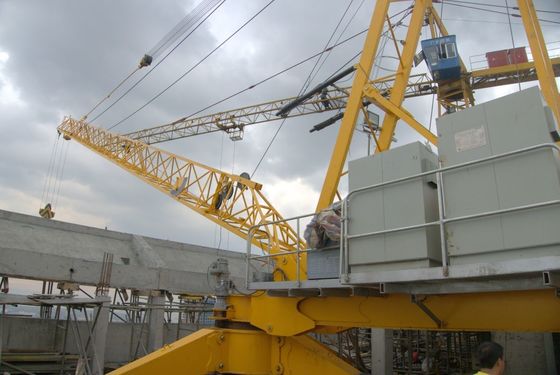

Derrick Crane can be assembled on top of roofs or high-rising buildings to help lift power units and cooling systems. They are efficient even when the crane cannot be lowered of dismantled with an auxiliary crane in heights of up to 300 meters.
Derrick cranes is also specially used for disassembling and unloading the inner climbing crane at the top of high-rising building. The main mechanisms of the derrick crane include trolley mechanism, slewing mechanism, and hoisting mechanism. The luffing range is 84°-15°. Both hoisting height and load capacity meet customer requirements and also can match to a variety of domestic and international power supply.
The derrick crane are equipped with inverter control and visual cab roof, making the operation more smooth and convenient.
Other models can also be customized according to your requirement.
Specifications
| Model | TCW4038 | Jib length | 40 m |
| Max load | 16 tons | Tip load | 3.8 tons |
| Mechanism | |||
| Hoisting mechanism | 100LVF40 | Slewing mechanism | RCV95 |
| Luffing mechanism | 40DVF35 | ||
Supply Scope
| 1) 1 set hoisting mechanism | |||
| 2) 1 set slewing mechanism | |||
| 3) 1 set Luffing mechanism | |||
| 4) 1 set jib 40 M | |||
| 6) 1 set tower head | |||
| 7) 1 set slewing table Chassis | |||
| 7) Complete set Electric control system | |||
| 8) Electric Cable: enough for the max free standing height | |||
| 9) Hoist wire rope: enough for the max free standing height | |||
| 10) Power supply: 380V/50Hz, 440V/60Hz | |||
| 11) Complete Technical documents: Including two sets of service manual and spare parts book for each unit tower crane |
